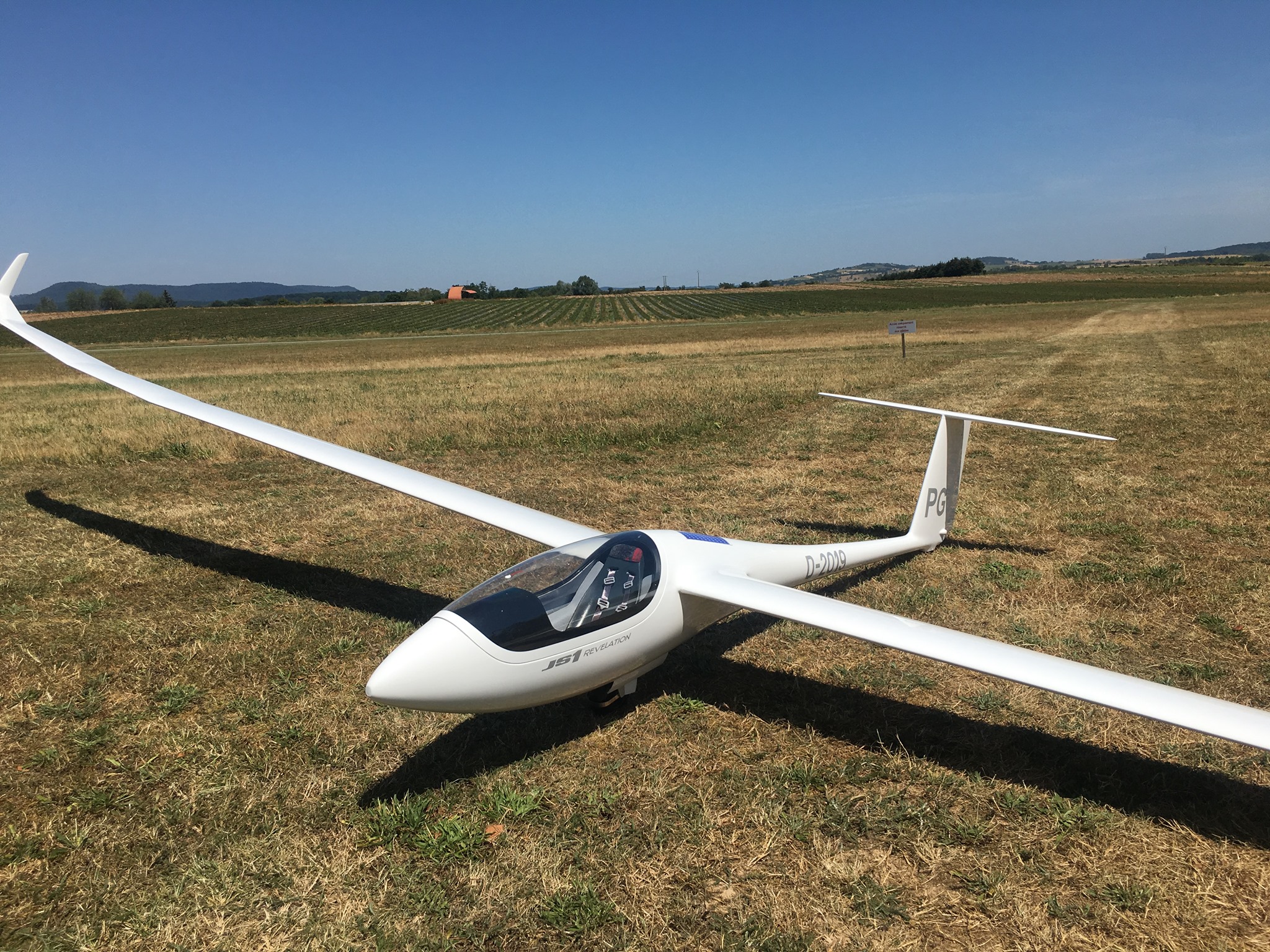

JS 1 Revelation Kit 1:3

JS 1 Kit

The kit includes:

• all GRP parts, ready for installation
• colour stability of all GRP parts due to UV-resistant varnish RAL 9003 (white) - no yellowing any more (clean varnish only with polish, do not use acetone or spirit)
• GRP canopy and fitting components, GRP cabin frame and mechanics with gas pressure damper
• GRP cockpit, seat pan, two side parts and backrest
• small articulated parts
• wing connector
• customs tariff number 95030075

The kit does not include:

• RC and drive components
• landing gear

Construction / prefabrication

wing:

• elevator, wing, winglet already installed
• high-strength two-part full GRP and CRP wing with three flaps and winglet (per side)
• gap-free linkage with GRP sealing lip and eye bolts 4 mm (rudder horns)
• thread for eye bolts (rudder horns) incorporated in flaps
• wing locking (M5 bolting) installed
• spoilers installed
• 20 mm hardened round steel shaft as wing connector

fuselage

• fuselage reinforcement with glass unidirectional tape in entire canopy area and CRP unidirectional tape in fuselage tube area
• closing frame installed with servo holders
• bowden cable for rudder linkage pasted
• back of fuselage varnished - invisible seam

accessoires:

• set of small parts (eye bolts, clevis, 3 mm threaded rod, servo and spoiler covers)

Packaging size

• inner wing 2300 mm
• fuselage 2350 mm

Available at additional cost:

• installation of canopy:
  • folding mechanism installed with gas pressure damper
  • canopy pasted and varnished
  • wind indicator pasted
  • canopy protection
• installation of landing gear:
  • exclusive landing gear by Paritech, modified with swing rubber, gas pressure damper, base plate and servo holder, completely installed in fuselage with landing gear doors
  • tail wheel installed
• rudder, covers of spoiler and servo installed
• tow release installed
• set of protective bags made of Cordura material:
  • dirt-repellent Cordura; lined with fleece inside to avoid scratches
  • high-quality zippers and carrying straps
  • set consisting of fuselage, elevator and wing connector, inner wing, outer wing and winglets
  • colour scheme: blue/gray with white Paritech print
